Air Compressor - Champion R Series Air Compressor Model HR7-12

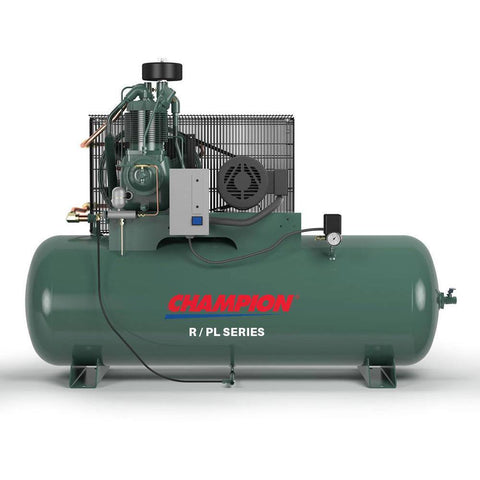

Champion R Series Air Compressor Model HR7-12

Factory Direct
Ships in 3-5 Business Days
Shipping times vary.
  • Item
    Part Number
  • HR7-12-115V1P
  • HR7-12-208V1P
  • HR7-12-230V1P
  • HR7-12-208V3P
  • HR7-12-230V3P
  • HR7-12-460V3P
  • HR7-12-575V3P
Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

The PL-Series compressor has been designed to operate in extreme duty applications and is a pressure-lubricated alternative to the R-Series unit. Because the PL-Series can operate up to 250 psig in remote locations or in off-level operations, it is a true industrial use compressor. The PL-Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor.

  • 3 - 35 hp
  • Up to 250 psig
  • 9.7 - 202 acfm at 175 psig on Electric Driven units
  • Tank or Base Mounted, Simplex, Duplex and Engine Driven Models
  • Two-Stage pressure lubricated pumps
  • Loadless auto stop/start
  • Pro-rated 5-year pump warranty and 1-year package warranty
  • Factory filled with ChampLub lubricant

Model Number: HR7-12
HP: 7.5
Series: R Series
Lubrication: Splash
Unit Config.: Simplex
Tank Config.: Horizontal
TankSize (Gal.): 120
Pump Model: R-30D
ACFM 175 PSIG: 25.8
RPM: 575
Approx.Ship Wt. (Lbs.): 860
ModelMatrix Number: CASRSA
L x W x H Dimensions Inches: 70½ x 25 x 53¼
