Air Compressor - Champion R Series Air Compressor Model HR3-12

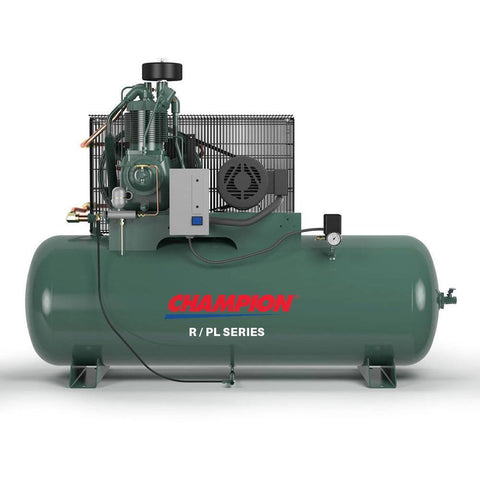

Champion R Series Air Compressor Model HR3-12

Factory Direct
Ships in 3-5 Business Days
Shipping times vary.
  • Item
    Part Number
    Price
    Quantity
  • HR3-12-115V1P
    2,833.63
  • HR3-12-208V1P
    2,833.63
  • HR3-12-230V1P
    2,833.63
  • HR3-12-208V3P
    2,768.61
  • HR3-12-230V3P
    2,768.61
  • HR3-12-460V3P
    2,768.61
  • HR3-12-575V3P
    2,768.61
Free Shipping
Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


Champion R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value. This compressor pump comes with a 5-year pro-rated warranty. As a result, R-series compressors offer long, trouble-free service with unbridled operating efficiency.

  • 1 ½ - 35 hp
  • Up to 175 psig
  • 9.7 - 202 acfm at 175 psig on electric driven units
  • Gas and diesel engine drive models available
  • Tank or Base Mounted, Simplex & Duplex Models
  • Single & Two Stage Splash-Lubricated Pumps
  • Prorated 5-Year Warranty on Pump
  • Factory filled with ChampLub lubricant

Specs:
Model Number: HR3-12
HP: 3
Series: R Series
Lubrication: Splash
Unit Config.: Simplex
Tank Config.: Horizontal
TankSize (Gal.): 120
Pump Model: R-15B
ACFM 175 PSIG: 9.7
RPM: 440
Approx.Ship Wt. (Lbs.): 725
ModelMatrix Number: CASRSA
L x W x H Dimensions Inches: 70½ x 25 x 52¾
