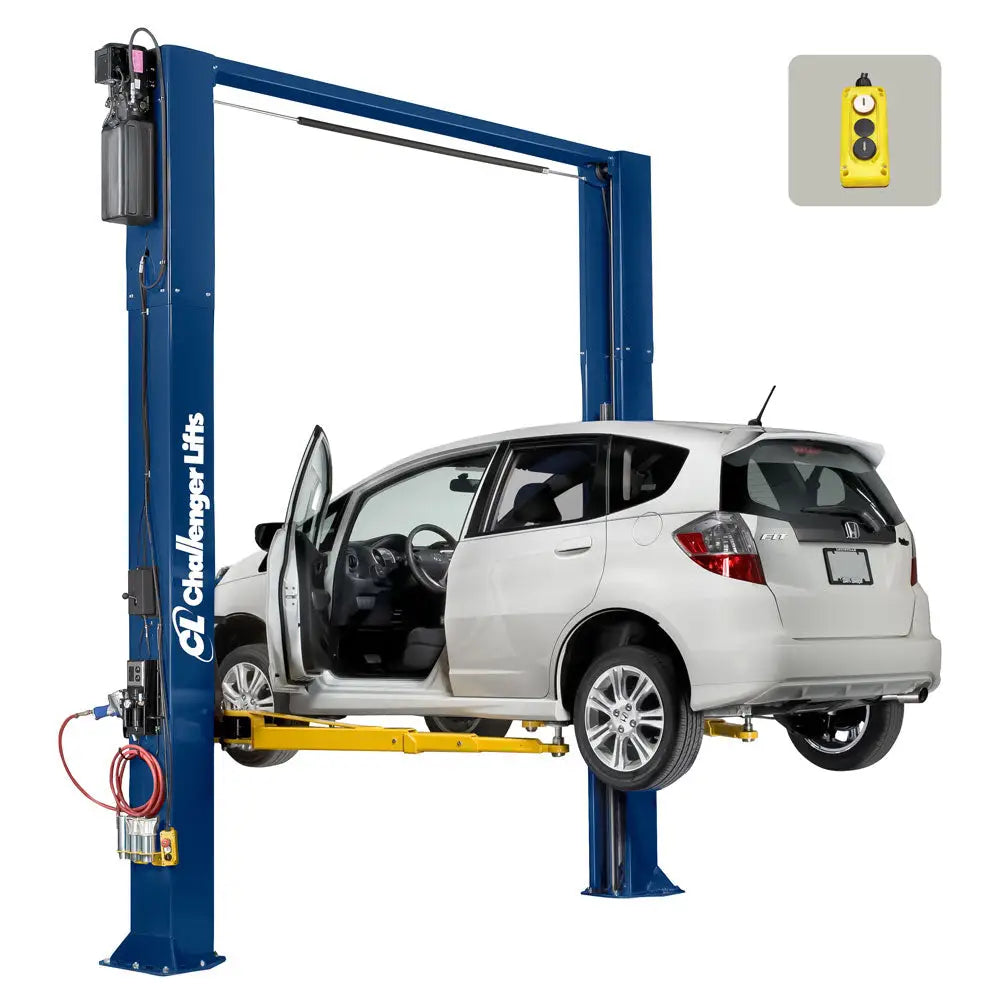

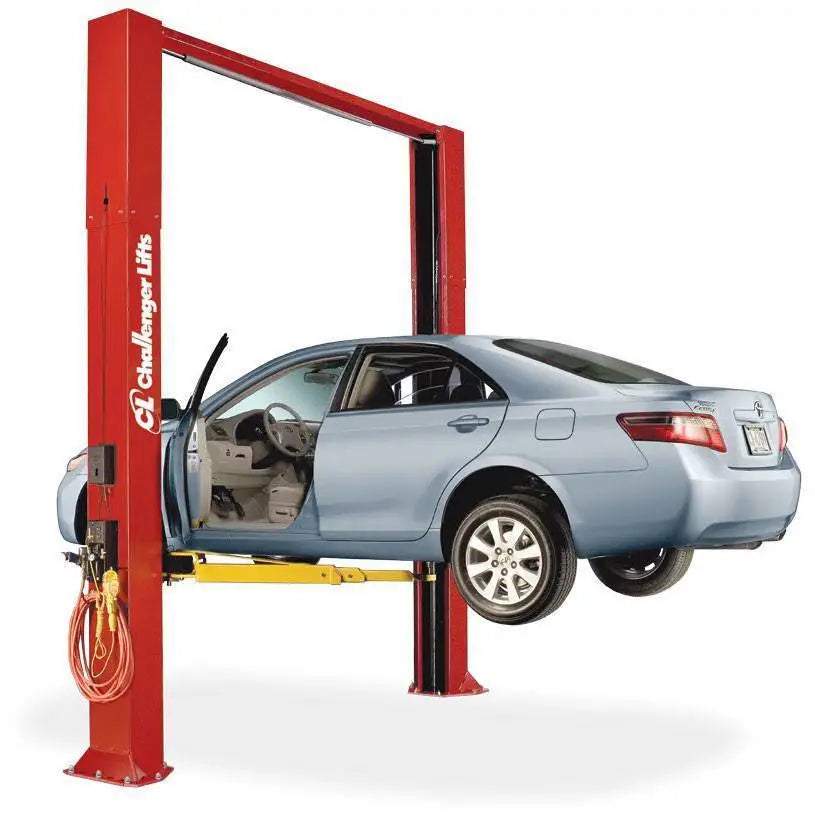

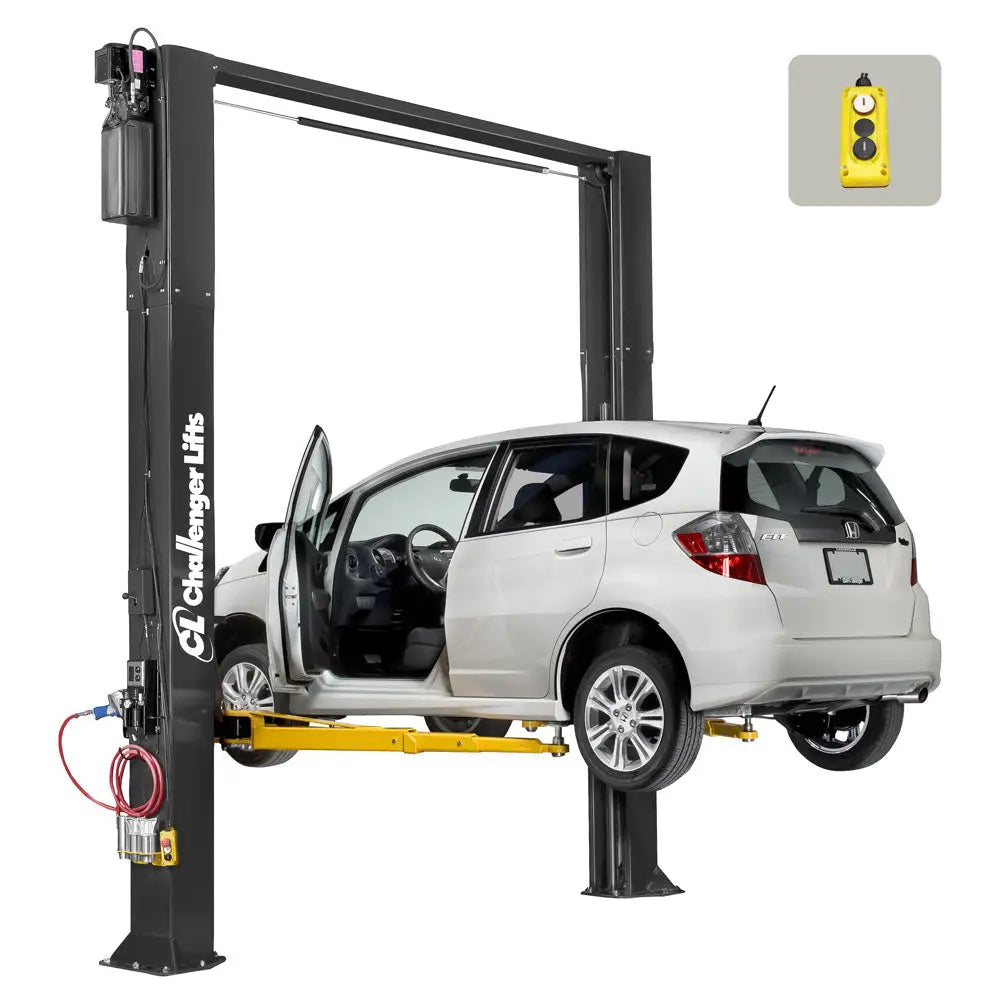

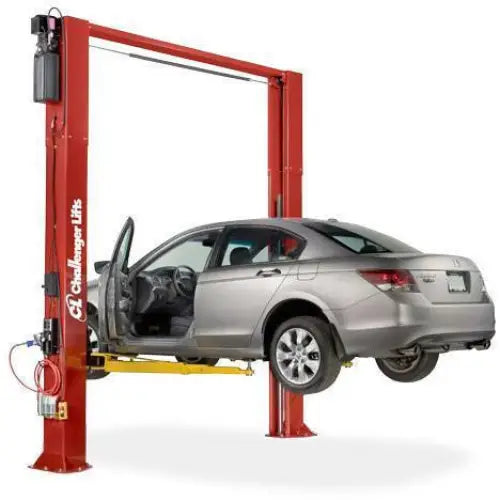

Name: Challenger Versymmetric 2-Post Lift w/ Dual Pendant Control (10,000 lbs)
Brand: Challenger Lifts
SKU: CHL-CL10V3-DPCR
Price: 10054.0 USD
Availability: InStock

Challenger Versymmetric 2-Post Lift w/ Dual Pendant Control (10,000 lbs)

Automotive - Challenger Versymmetric 2-Post Lift W/ Dual Pendant Control (10,000 Lbs)

Challenger Versymmetric 2-Post Lift w/ Dual Pendant Control (10,000 lbs)

SKU: CHL-CL10V3-DPCR From $10,054.00

Lead Time:

Part No: CHL-CL10V3-DPCR

No Extension

2ft Extension

3ft Extension

Quantity

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

ACCESSORIES

DOWNLOADS

Related Categories: ALI Certify Lifts Automotive Automotive Lift Challenger Lifts

PRODUCT INFO

Versymmetric 2-Post Lift with Dual Pendant Control (10,000 Lb)

Features:

Versymmetric offset front arms provide directSPOT to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential.
Oversized Pulley and heavy duty cable
48in elongated carriage design decreases load on bearing.
11' 8in standard height with 2' and 3' extensions available allows lift to be placed in standard service bay with 12' ceiling.
Padded overhead shut off system prevents vehicle damage from being raised too high
Fully gusseted base plate design reduces column deflection.
Single point mechanical lock release system with jacket coated protection and no lock cable pulleys, and double clutch release bar protects cable from stretching while disengaging both column locks simultaneously.
Rubber door guards provide added security against vehicle door damage.

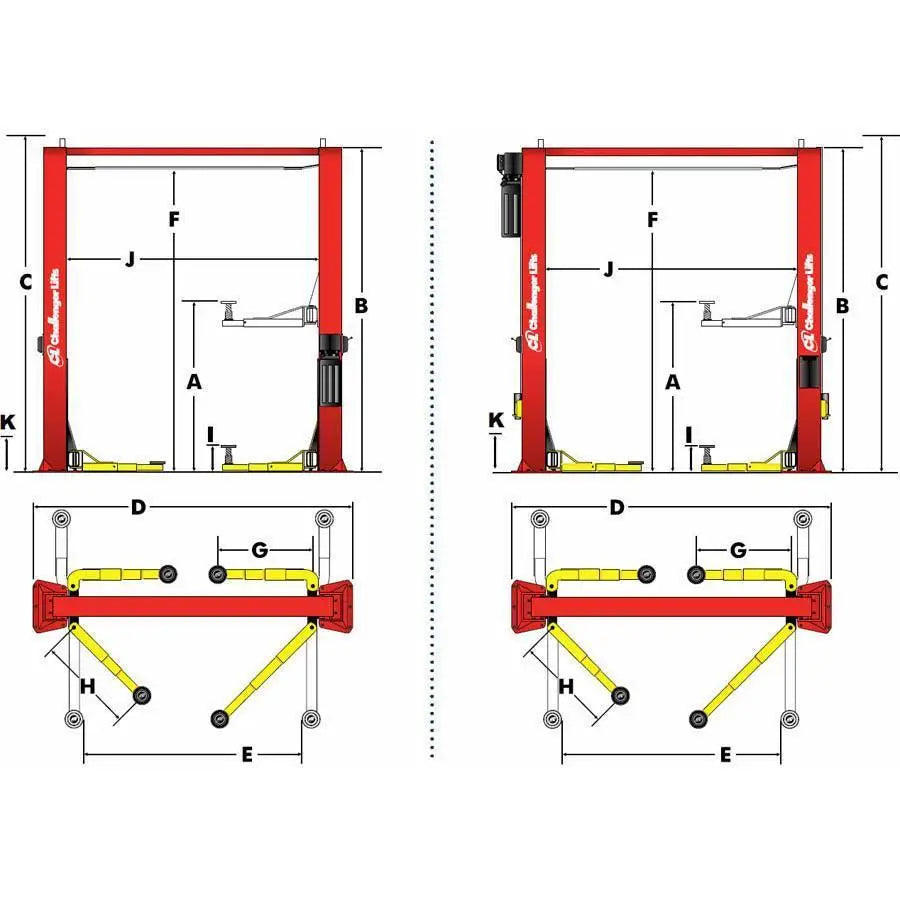

Specs:

Lifting Capacity: 10000 lbs
Rise Height: 74-5/8in
Column Height: 11ft 8in
Cylinder Overall (Full Stroke): 11ft 11in
Adjustable Width Overall: 11ft 6-1/2in
Drive-Thru Clearance: 100-1/2in
Floor To Overhead Switch: 11ft 2-1/2in
Front Arm Reach (Min./ Max.): 19-13/16in / 42in
Rear Arm Reach (Min. / Max.): 37-5/8in / 60in
Screw Pad Height: Min 3-7/8in / Max 7-1/8in
Inside Columns: 110in
Low Lock Height: 12in Net Rise
Motor: 2HP
Voltage: 208v-230v Single Phase Standard
Speed of Rise: 48s
Max. Load Per Arm: 2,500lb.
Ceiling Height Required: 12ft
