Dill TPMS Sensor: D-1056
Dill TPMS Sensor: D-1056
Shipping Estimate
Ships in 1-3 Business Days
Shipping times vary.
Shipping times vary.
Part No: DIL-1056
SHIPPING INFO
Shipping Estimate
Ships in 1-3 Business Days
Shipping times vary.
Shipping times vary.
ACCESSORIES
Related Categories:
Dill
Shop Supplies
TPMS Service
PRODUCT INFO

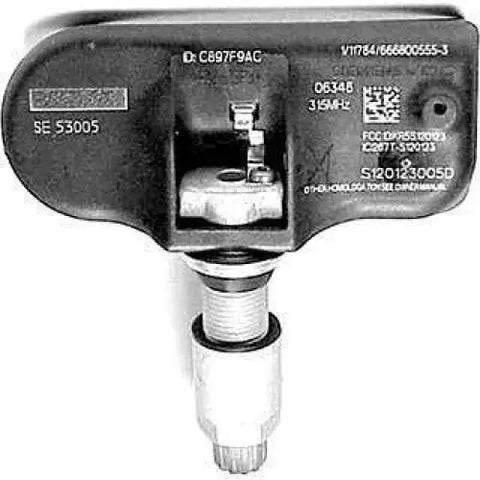

The Dill 1056 OE Sensor is a direct-fit 315 MHz clamp-in TPMS sensor engineered to meet original equipment quality and performance standards. Manufactured by Continental and distributed by Dill Air Controls, this replacement sensor monitors tire pressure and temperature while providing reliable OE-level communication with the vehicle’s TPMS system. Designed specifically for select Mazda vehicles, the Dill 1056 ensures accurate readings, dependable signal transmission, and long service life.
Features:
- OE replacement TPMS sensor designed to match factory specifications
- 315 MHz frequency for reliable communication with OE TPMS systems
- Clamp-in metal valve design for durability and secure wheel installation
- Measures tire pressure and temperature for accurate monitoring
- 2-piece serviceable design allows valve replacement when needed
- Manufactured by Continental for OE-grade reliability
- 8-digit hex decimal sensor ID compatible with OE programming procedures
- Engineered specifically for Mazda vehicle applications
Specs:
Brand: Dill Air ControlsPart Number: Dill 1056
Sensor Type: OE Replacement TPMS Sensor
Frequency: 315 MHz
Valve Style: Clamp-In
Valve Material: Metal
Housing Color: Black
Part Design: 2 Piece
Shape: 7 - Small Hammer
Torque Nut: 8 Nm (71 in-lbs)
Torque Screw: 8 Nm (71 in-lbs)
Torque Core: 0.5 Nm (4 in-lbs)
FCC ID: KR5S180052015B
IC Number: 267T-S118015B
Sensor ID Length: 8 Digits
Sensor ID Type: Hex Decimal
Manufactured By: Continental
Application:
The Dill 1056 TPMS sensor is designed for OE replacement in select Mazda vehicles equipped with 315 MHz TPMS systems. Always verify vehicle compatibility before installation.Fitment
Mazda
3 – 2004
3 – 2005
3 – 2006–2010
5 – 2006–2009
6 – 2005–2010
CX-7 – 2007–2010
CX-9 – 2007–2010
MX-5 Miata – 2006–2009
RX-8 – 2004
RX-8 – 2005–2010
MazdaSpeed 6 – 2007–2008
OE Part No.
GN3A-37-140B
FE01-37-140A
GN3A-37-140
