Rotary SPO12-AV-LC 12,000 lb Symmetric 2-Post Lift, 140" Low Ceiling, AV Arms
Car
Light TruckMade in USA
Rotary SPO12-AV-LC 12,000 lb Symmetric 2-Post Lift, 140" Low Ceiling, AV Arms
Estimated Lead Time:
Part No: RTY-SPO12-AV-LC-BL
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
ALI Certify Lifts
Automotive Lift
Rotary
Shop Equipment
Two Post Lifts
PRODUCT INFO

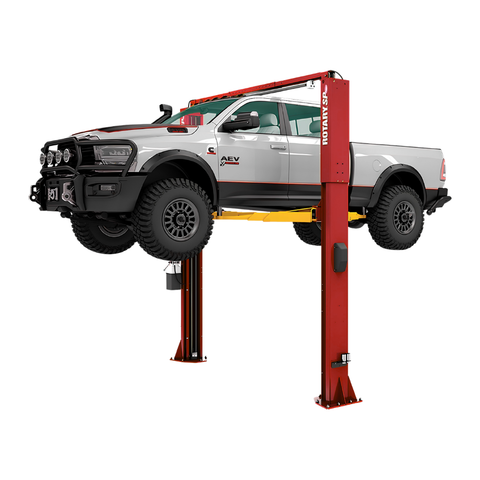

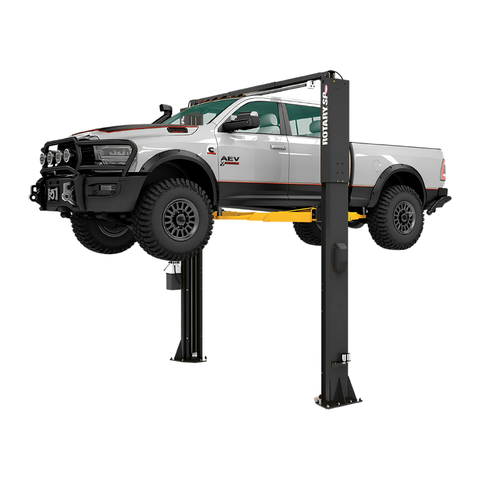

The Rotary SPO12-AV-LC is a 12,000 lb symmetric 2-post vehicle lift with a 140 in low-ceiling configuration and low-profile AV Arms. Its adjustable-width design provides additional drive-through clearance for service shops working with framed and unibody vehicles, including trucks and vans within the lift's rated capacity and clearance limits. Standard TA truck and RA round-poly adapters support multiple vehicle pickup configurations, while Red, Blue, and Black color options are available.
Features:
- 12,000 lb rated lifting capacity
- Symmetric 2-post vehicle lift design
- 140 in low-ceiling configuration
- Low-profile AV Arms with 27-1/2 to 59 in reach
- 3-7/8 in minimum adapter height with arms fully extended
- Adjustable width with three standard installation positions
- Adjustable TA truck adapters for framed vehicles
- RA round-poly adapters for unibody vehicles
- Double-S column design
- Available in Red, Blue, or Black
- ALI Gold Certified
Specs:
Part No.: SPO12-AV-LCProduct Type: Symmetric 2-Post Vehicle Lift
Capacity: 12,000 lb
Configuration: Low Ceiling
Color Options: Red, Blue, Black
Overall Height: 140 in
Min Ceiling Height: 142-3/4 in
Rise: 75-3/4 to 78-1/8 in
Overall Width: 11 ft 5-5/8 in to 12 ft 5-5/8 in
Drive-Thru Width: 102-3/8 to 114-3/8 in
Inside Columns: 114-7/8 to 126-7/8 in
Arm Reach: 27-1/2 to 59 in
Min Adapter Height: 3-7/8 in
Min Bay Size: 12 ft x 26 ft
Motor: 2 HP
Voltage: 208-230V
Phase: Single Phase
Time to Full Rise: 60 sec
Certification: ALI Gold Certified
Application:
Automotive service and repair facilities servicing framed and unibody vehicles within the lift's rated capacity and clearance limitsSuitable for truck and van service requiring a 12,000 lb symmetric 2-post lift
Applicable to auto repair, collision repair, automotive fleet, and utility fleet service environments
Supports under-vehicle service where low-profile arm and adapter access is beneficial
Includes:
Low-profile AV ArmsAdjustable TA truck adapters
RA round-poly adapters
4 x 3-1/2 in adapter extensions
4 x 5 in adapter extensions
Adapter storage rack
Warranty:
5 Year Warranty on Equipment Structure*1 Year Warranty on Operating Functional**
1 Year Labor Warranty
For more info Here
* Ex of Structure parts: carriage, columns, yokes, arms, runways, plungers
** Ex of Functional Parts: power units, cylinders, latches, adapters, controls
