Rotary SPO10-AV 10,000 lb Symmetric 2-Post Vehicle Lift, AV Arms
Car
Light TruckFeatured
Made in USA

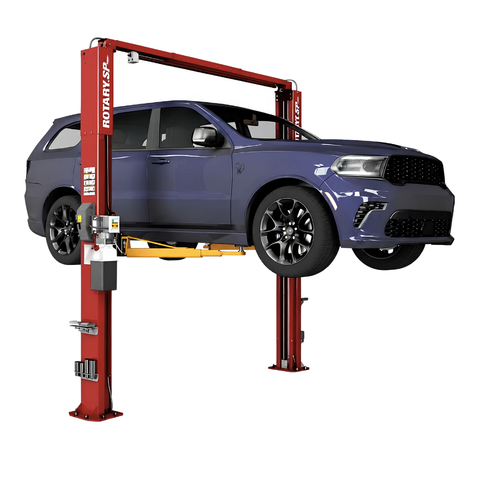

Rotary SPO10-AV 10,000 lb Symmetric 2-Post Vehicle Lift, AV Arms
Estimated Lead Time:
Part No: RTY-SPO10-AV-RD
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
ALI Certify Lifts
Automotive Lift
Rotary
Shop Equipment
Two Post Lifts
PRODUCT INFO
The Rotary SPO10-AV is a 10,000 lb symmetric 2-post vehicle lift with AV Arms and an adjustable-width installation for automotive service applications. This standard-height, standard-power configuration provides 28-1/2 to 58-1/4 in arm reach and is supplied with adjustable TA truck adapters, RA round poly adapters, adapter extensions, and a storage rack. It supports framed and unibody vehicles, including cars, SUVs, light trucks, vans, truck-frame vehicles, and EVs within the lift's rated capacity and vehicle-clearance requirements. Available in Red, Black, or Blue.
Features:
- Symmetric 2-post lift design with 10,000 lb lifting capacity
- AV Arms provide 28-1/2 to 58-1/4 in reach for broad vehicle access
- 3-3/8 in minimum adapter height at full arm extension
- Adjustable installation width with three width settings
- Double-S column design provides a compact column profile for vehicle access
- Adjustable TA truck adapters and RA round poly adapters support framed and unibody vehicles

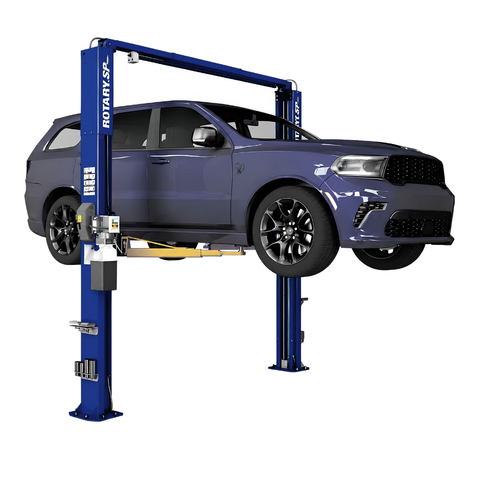

- Available in Red, Black, or Blue
Specs:
Part No.: SPO10-AVProduct Type: Symmetric 2-Post Vehicle Lift
Capacity: 10,000 lb
Configuration: Standard Height, Standard Power
Colors: Red, Black, Blue
Overall Height: 142-1/2 in
Min Ceiling Height: 144 in
Overall Width: 137-5/8 to 149-5/8 in
Width Settings: 137-5/8 in, 143-5/8 in, 149-5/8 in
Drive-Thru Width: 102-1/2 to 114-1/2 in
Inside Columns: 114-3/4 to 126-3/4 in
AV Arm Reach: 28-1/2 to 58-1/4 in
Min Adapter Height: 3-3/8 in at full arm extension
Standard Rise: 72-3/4 to 78-1/4 in
Min Bay Size: 12 x 24 ft
Motor: 2 HP
Voltage: 208-230V
Phase: Single Phase
Full Rise Time: 45 sec, varies with vehicle weight
Application:
For automotive service shops lifting cars, SUVs, light trucks, vans, truck-frame vehicles, unibody vehicles, and EVs within the lift's rated capacity and vehicle-clearance requirements.Suitable for framed and unibody vehicle service using the supplied TA truck and RA round poly adapters.
Includes:
Adjustable TA Truck AdaptersRA Round Poly Adapters
4 x 3-1/2 in Adapter Extensions
4 x 5 in Adapter Extensions
Storage Rack
Warranty:
5 Year Warranty on Equipment Structure*1 Year Warranty on Operating Functional**
1 Year Labor Warranty
For more info Here
* Ex of Structure parts: carriage, columns, yokes, arms, runways, plungers
** Ex of Functional Parts: power units, cylinders, latches, adapters, controls
