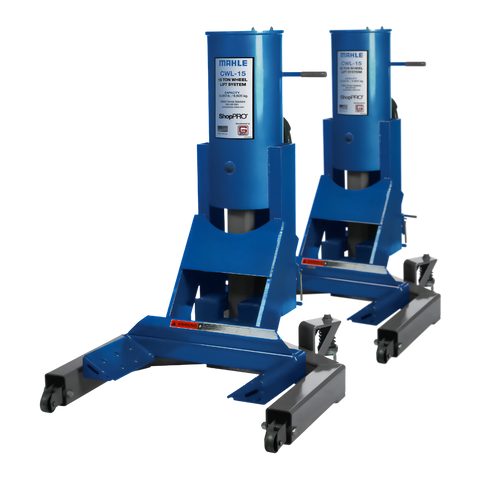

Mahle CWL-15 Air-Powered 15 Ton Wheel Lift (Pair) - 485 80090 00
Mahle CWL-15 Air-Powered 15 Ton Wheel Lift (Pair) - 485 80090 00
Part No: MAH-4858009000
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Automotive Lift
MAHLE
New Arrivals
Shop Equipment
PRODUCT INFO
The Mahle CWL-15 is a shop-air powered 15 ton wheel lift set for lifting one end of applicable over-the-road vehicles by the tires. It provides 30,000 lb capacity per set, 24-inch max lift height, and a built-in vehicle support stand for open access under the raised end. Dual trigger control supports synchronized raising and lowering for controlled shop operation.
Features:
- Shop-air powered wheel lift system
- 30,000 lb capacity per set
- 15,000 lb max capacity per lift
- 24-inch max lift height with 24-inch stroke
- Built-in vehicle support stand for open under-vehicle access
- Dual trigger control valve for synchronized raising and lowering
- Designed for tire-contact lifting in low-ceiling shop areas
- Made in U.S.A.
Specs:
Brand: MahleModel: CWL-15
Part No.: 485 80090 00
Product Type: Wheel Lift System
Capacity Per Set: 30,000 lb
Capacity Per Lift: 15,000 lb
Min Start Height: Floor Level
Max Lift Height: 24in
Stroke: 24in
Power: Shop Air
Required Air Pressure: 160 psi
Wheel Diameter Range:
- 19.5in Min w/o Adapters
- 24.5in Max
Min Wheel Diameter w/ Adapters: 16in
Dimensions: 53.3in H x 41.6in W x 44.3in D
Shipping Weight: 1,500 lb
Country of Origin: USA
Qty: Pair
Application:
Lifts one end of applicable over-the-road vehicles by the tiresUsed for commercial vehicle service applications, including fire and refuse trucks, heavy recreational vehicles, and motor coaches
Built for shop lifting where open access under one raised end of the vehicle is needed
Fitment:
Wheel Diameter w/o Adapters: 19.5" Min, 24.5" Max
Wheel Diameter w/ Optional Adapters: 16" Min
Includes:
2 x CWL-15 Wheel lifts
