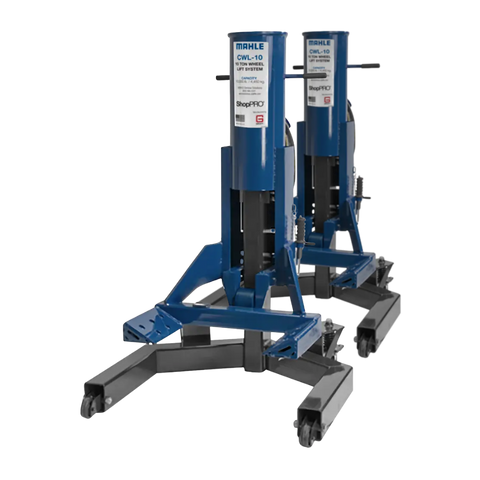

Mahle CWL-10 Air-Powered 10 Ton Wheel Lift (Pair) - 485 80089 00
Mahle CWL-10 Air-Powered 10 Ton Wheel Lift (Pair) - 485 80089 00
Part No: MAH-4858008900
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Automotive Lift
MAHLE
New Arrivals
Shop Equipment
PRODUCT INFO
Mahle CWL-10 is a shop-air powered wheel lift for commercial vehicle service. It is used to lift one end of vehicles such as fire trucks, refuse trucks, heavy recreational vehicles, and motor coaches from the tires. The built-in vehicle support stand functionality and synchronized raising/lowering controls help provide under-vehicle access during service.
Features:
- 10,000 lb capacity per lift
- 20,000 lb total capacity when used as a set of 2
- 24 in max lift height from floor-level start height
- Shop-air powered design for service bay operation
- Dual trigger control valve supports synchronized raising and lowering
- Built-in vehicle support stand functionality helps provide under-vehicle access
- Wide spring-loaded base provides a stable lifting platform
- Suitable for shops with low ceiling heights
Specs:
Brand: MahleModel: CWL-10
Part No.: 485 80089 00
Product Type: Wheel Lift
Capacity Per Lift: 10,000 lb
Capacity Per Set: 20,000 lb
Start Height: Floor Level
Max Lift Height: 24 in
Stroke: 24 in
Power: Shop Air
Required Air Pressure: 160 psi
Wheel Diameter Range w/o Adapters: 19.5 in to 24.5 in
Dimensions: 53.3 in H x 41.6 in W x 44.3 in D
Shipping Weight: 1,000 lb
Manufacturing: Made in USA
Qty: Pair
Application:
Commercial vehicle wheel lifting from the tiresLifting one end of fire trucks, refuse trucks, heavy recreational vehicles, and motor coaches
Service bay lifting where under-vehicle access is needed
Low-ceiling shop lifting applications
Fitment:
Wheel Diameter w/o Adapters: 19.5 in to 24.5 in
Includes:
2 x CWL-10 wheel lift
