Corghi ET1680 TruckLine Touchscreen Truck Wheel Balancer - 0-21101681/00
Part No: COR-02110168100
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Balancers Machine
Corghi
Shop Equipment
Tire Balancers
PRODUCT INFO

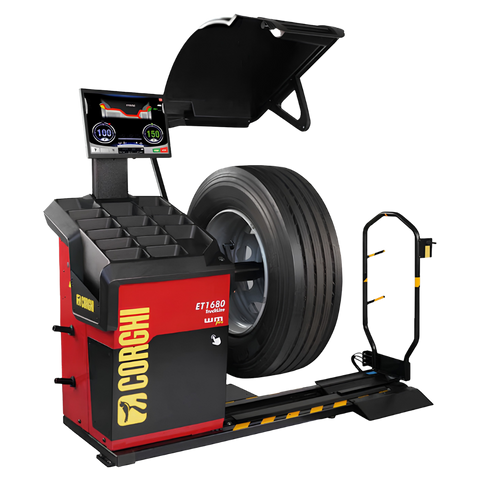

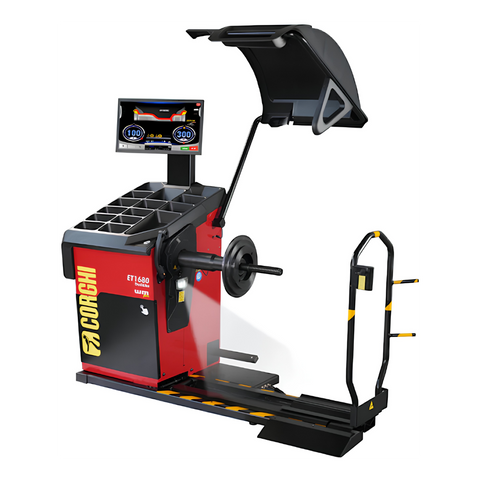

The Corghi ET1680 TruckLine is an advanced touchscreen wheel balancer for truck wheel balancing. It is designed for heavy-duty, light, off-road, and car vehicle wheels with a low-speed spin and measuring system. Smart Arm Plus, FSP, LaserBlade, DPA, and the integrated pneumatic wheel lift help improve setup, positioning, visibility, and operator efficiency.
Features:
- 22 in touchscreen monitor with graphical interface
- Smart Arm Plus measurement system
- Fast Selection Program for automatic program activation
- LaserBlade pointer for inner rim plane positioning
- Low-speed spin and measuring system
- Direct Positioning at the end of the spin cycle
- Electromagnetic brake for cleaning and counterweight application
- Integrated low-profile pneumatic wheel lift
- Integrated LED illuminator
- Weight Management Plus software programs
- Space-saving wheel guard for wall positioning
Specs:
Part No.: 0-21101681/00Model: ET1680
Series: TruckLine
Product Type: Touchscreen Wheel Balancer
Power Supply:
- 200-230V, 1Ph, 50-60Hz
- 100-115V, 1Ph, 50-60Hz
Total Power Absorption: 400 W
Supply Pressure: 8-12 bar / 120-165 psi
Balancing Speed: 100 rpm car / 80 rpm truck
Average Measurement Time: 8-16 sec
Balancing Precision: 1 g car / 10 g truck
Shaft Diameter: 40 mm / 1.57 in
Rim Width Range: 1.5-20 in / 40-510 mm
Rim Diameter Range: 10-30 in / 265-765 mm
Max Wheel Weight: 300 kg / 660 lb at 8 bar
Max Wheel Diameter: 52 in / 1321 mm
Machine Weight: 260 kg / 573 lb
Application:
Truck wheel balancing for wheel service shops and commercial tire service operationsBalancing heavy-duty, light, off-road, and car vehicle wheels
Dynamic, Static, Hidden Weight, and alloy-rim balancing programs for truck and car wheels
Fitment:
Rim Diameter: 10-30 in / 265-765 mm
Rim Width: 1.5-20 in / 40-510 mm
Wheel Diameter: Up to 52 in / 1321 mm
Wheel Weight: Up to 300 kg / 660 lb at 8 bar
Limited Warranty:
2 year parts1 year labor
Starting April, 2024
3 year parts
1 year labor
For more info Here
