Cemb SMT56 Semi-Automatic Electro-Hydraulic Truck Tire Changer, 14"-42"
Part No: CMB-SMT56
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Cemb
OTR & Minning
Shop Equipment
Tire Changer
Tire Changing Machine
PRODUCT INFO

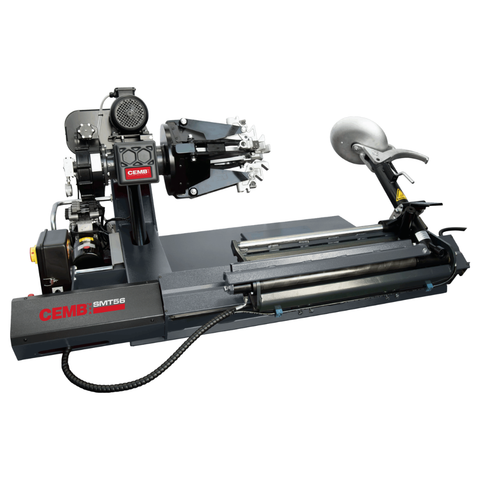

The Cemb SMT56 is a semi-automatic electro-hydraulic truck tire changer designed for commercial wheel service on trucks, buses, tractors, and earth-moving equipment. Its hydraulic self-centering chuck provides a standard 14-42 in clamping range, with capacity up to 56 in when used with optional extensions. The machine combines automatic tool-carriage translation with manual tool-arm lifting and rotation for controlled tire service.
Features:
- Hydraulic self-centering chuck with five-point clamp profile
- Two-speed bidirectional chuck rotation
- Automatic left-right tool-carriage movement
- Manual tool-arm lifting and rotation with quick unlocking
- Tool-holder arm secures in two working positions
- Semi-spherical bead-breaker disc profile
- Portable low-voltage control unit
- Magnetothermal motor-protection system
- Optional extensions increase clamping capacity up to 56 in
Specs:
Model: SMT56Series: Dynamo Series
Product Type: Semi-Automatic Electro-Hydraulic Truck Tire Changer
Product Configuration: Standalone Machine
Clamping Type: Hydraulic
Clamping Range: 14-42 in
Extended Clamping Range: Up to 56 in w/ Optional Extensions
Min Central-Hole Clamping: 5 in
Max Wheel Diameter: 91 in
Max Wheel Width: 45 in
Max Wheel Weight: 4,409 lbs
Bead Breaker Force: 25,000 N
Chuck Rotation Speed: 4.5-9 rpm
Motor Power: 2.2-3 kW / 3-4 hp
Phase: 3-Phase
Net Weight: 855 kg
Application:
Commercial tire service for trucks, buses, tractors, and earth-moving equipmentTubeless and inner-tube tire changing
Fleet maintenance, commercial tire shops, municipal vehicle maintenance, and construction equipment service
Fitment:
Wheel/Rim Types: Grooved rims, split-ring rims
