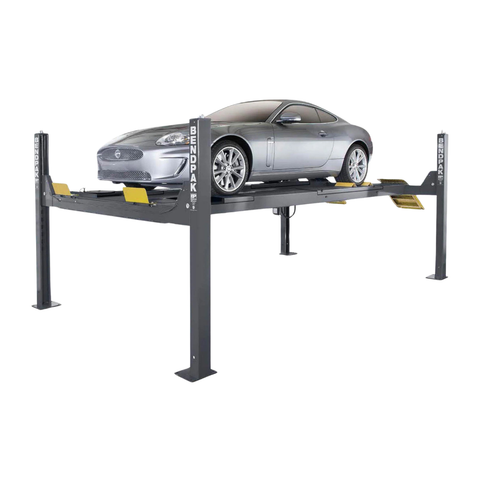

BendPak HDS-14LSX 14,000-lb Four-Post Alignment Lift - 5175171
Part No: BP-5175171
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
ALI Certify Lifts
Alignment Lifts
Alignment Service
Automotive Lift
BendPak
Four-Post Lifts
Shop Equipment
PRODUCT INFO

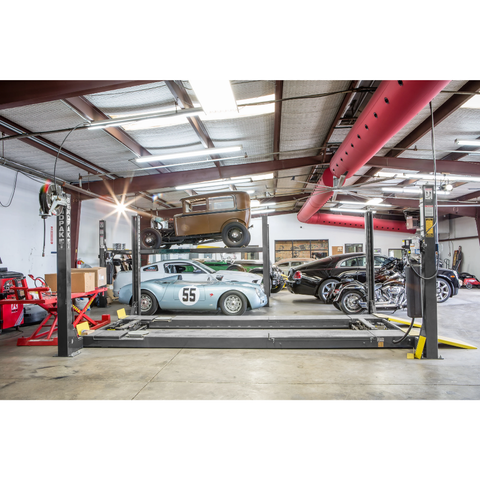

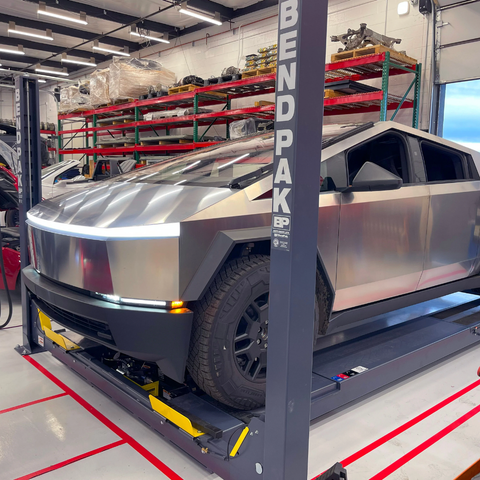

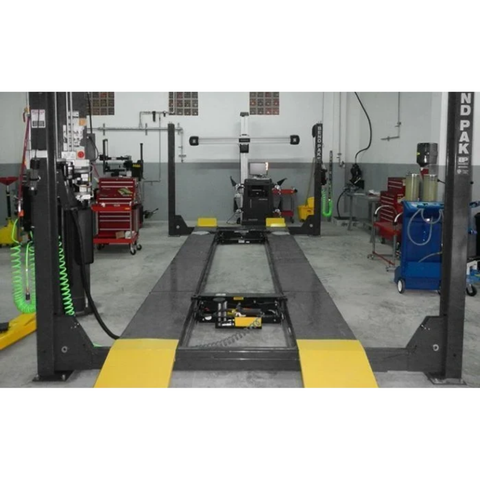

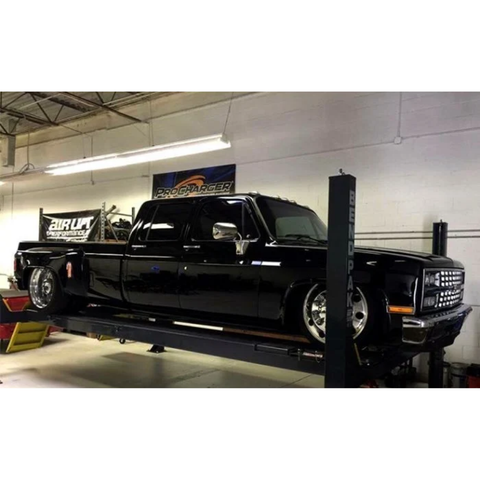

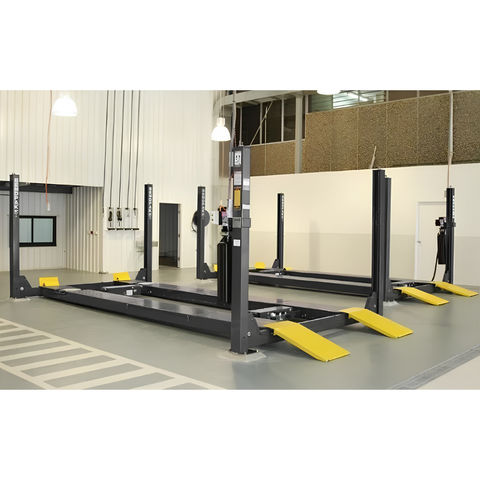

The BendPak HDS-14LSX 5175171 is a 14,000-lb four-post alignment lift for automotive lifting and wheel-alignment service. Front turn plates and rear slip plates support alignment adjustments, while adjustable runway spacing, automatic leveling and 15 locking positions help accommodate different vehicle setups. It is designed for cars, trucks and SUVs that remain within the lift's dimensional, wheelbase and capacity limits.
Features:
- 14,000-lb four-post lifting capacity for automotive lifting and alignment service

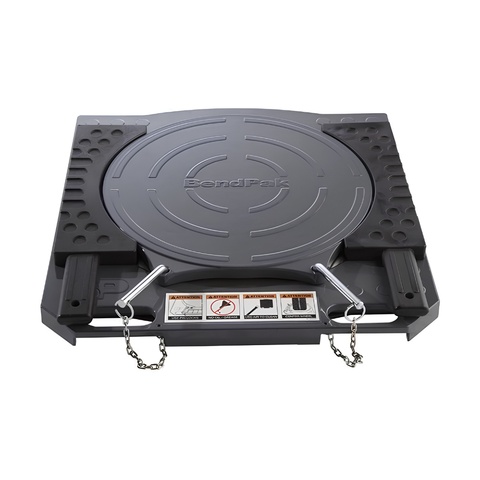

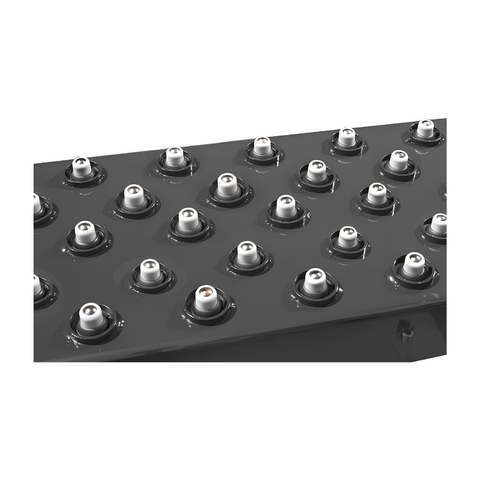

- Front alignment turn plates and rear slip plates allow wheel movement during alignment adjustments
- Multi-position turn-plate pockets support different vehicle setups and wheelbases
- Adjustable runway spacing accommodates different vehicle tread widths
- Automatic leveling system with 15 locking positions at 4 in spacing
- Pushbutton pneumatic safety-lock release
- Secondary slack-cable safety system
- Electric-hydraulic lifting system with a single hydraulic cylinder mounted beneath the runway
- Internal Anti-Sway slider blocks help maintain stable lift movement

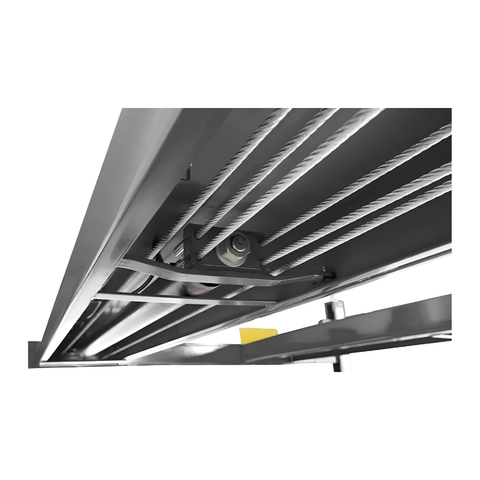

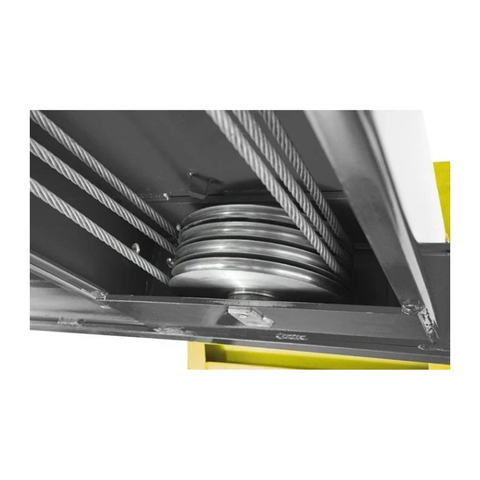

- 1/2 in lifting cables and 10.5 in cable sheaves
- Runway accessory rails support optional 7,000-lb rolling bridge jacks
- Drive-up ramps support loading of low-ground-clearance vehicles
Specs:
Model: HDS-14LSXPart No.: 5175171
Product Type: Four-Post Alignment Lift
Product Configuration: Standalone Alignment Lift
Lifting Capacity: 14,000 lb
Max Front Axle Capacity: 7,000 lb
Max Rear Axle Capacity: 7,000 lb
Lifting Time: 60 sec
Locking Positions: 15
Lock Spacing: 4 in
Min Runway Height: 7.5 in
Max Rise: 70.75 in
Max Lifting Height: 77.5 in
Overall Width: 130 in
Overall Length: 242 in
Outside Post Length: 213 in
Post Height: 92 in
Inside Columns: 120 in
Drive-Through Clearance: 98 in
Runway Width: 20 in
Runway Length: 197.5 in
Runway Spacing: 34.5 to 41.5 in
Alignment Range:
- Min 4-Wheel Alignment: 89 in
- Max 4-Wheel Alignment: 156 in
- Max 2-Wheel Alignment: 182 in
Wheelbase Capacity:
- Rated Capacity: 140 in min wheelbase
- 75 Percent Capacity: 120 in min wheelbase
- 50 Percent Capacity: 100 in min wheelbase
- 25 Percent Capacity: 80 in min wheelbase
Voltage: 208-230V
Frequency: 60 Hz
Phase: 1
Operating Hydraulic Pressure at Max Load: 2,250 psi
Regulated Air Requirement: 50-125 psi at 3 CFM min
Sound Level: 45 dB
Certifications: ALI, CE
Country of Manufacture: China
Shipping Dimensions: 25 x 209 x 33 in
Shipping Weight: 3,216 lb
Shipping Method: Flatbed
Offload Requirement: Forklift
Application:
Automotive repair and alignment shops servicing cars, trucks and SUVs within the lift's rated capacity and dimensional limitsWheel-alignment service and general vehicle lifting
Includes:
Electric-hydraulic power unit2 x drive-up ramps
2 x alignment turn plates
2 x filler plates
Rear slip plates
Bend-Pak Warranty:
5 Years Lift structure2 Years Hydraulic cylinder(s) and power unit
1 Year Operating components
1 Year Electrical components (excluding power unit)
1 Year Labor Warranty on site or at factory*
1 Year Free‐Shipping** on ground‐freight charges related to warranty performance
