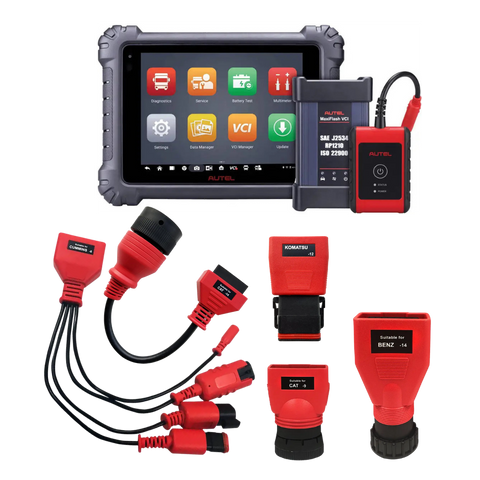

Autel MS909CV Diagnostic Kit w/ Off-Highway Adapters
Part No: AUT-MS909CV-ADPTS
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Autel
Diagnostic Tools
Mobile Service
Shop Tools
PRODUCT INFO
The Autel MS909CV-ADPTS kit combines the MaxiSYS MS909CV commercial vehicle diagnostic tablet system with an added off-highway adapter pack for fleet and heavy equipment service. It supports diagnostics for light, medium, and heavy-duty commercial vehicles, Class 1-Class 9 heavy-duty vehicles, and off-road construction equipment where Autel coverage applies. The added adapters support Komatsu, Cummins, Caterpillar, and Mercedes-Benz off-highway engine applications without ordering those adapter items separately.
Features:
- Kit combines the MaxiSYS MS909CV diagnostic system with added off-highway adapter coverage for heavy equipment and fleet shops
- Supports all-systems auto scan, live data viewing and graphing, active tests, and bi-directional controls where supported
- Designed for commercial vehicle diagnostics on light, medium, and heavy-duty vehicles
- Provides diagnostic coverage for Class 1-Class 9 heavy-duty vehicles and off-road construction equipment
- Supports construction and agricultural machinery diagnostics where Autel coverage applies
- VINscan and AutoVIN support rapid vehicle identification
- Topology module mapping helps show vehicle network and system relationships
- Expert Mode provides direct access to OE-specific systems including engine, transmission, and braking systems
- MaxiFlash VCI supports wireless communication and J2534/RP1210 pass-thru functions
- MaxiBAS B200 supports battery, starting, and charging system analysis
- Adapter pack adds Komatsu 12-pin, Cummins 8-pin, CAT 9-pin, CAT 14-pin, and Benz 14-pin connectivity for supported off-highway applications
- ADAS calibration capability supported when used with the required Autel Commercial Vehicle ADAS calibration package
Specs:
Brand: AutelPart No.: MS909CV-ADPTS
Product Type: Commercial vehicle diagnostic kit w/ off-highway adapter pack
Primary Tool: MaxiSYS MS909CV
Operating System: Android 10.0
Processor: Octa-core, 4 x 2.2 GHz + 4 x 1.8 GHz
Memory: 4 GB RAM
Storage: 128 GB on-board memory
Display: 9.7 in. TFT-LCD capacitive touchscreen
Resolution: 1536 x 2048
Battery: 15000 mAh 3.8 V lithium-polymer
Approx. Tablet Runtime: ~8 hours continuous operation when fully charged
Input Voltage: 12 V / 3 A adapter
Operating Temp: 0 to 50 Deg.C / 32 to 122 Deg.F
Storage Temp: -10 to 60 Deg.C / 14 to 140 Deg.F
Tablet Dimensions: 304.4 mm x 227.8 mm x 42.5 mm / 11.98 in. x 8.97 in. x 1.67 in.
Tablet Weight: 1.66 kg / 3.66 lb
Connectivity:
- Wi-Fi x2 802.11 a/b/g/n/ac 2x2 MIMO
- BT V5.0
- GPS
- USB 2.0
- HDMI 2.0
- SD card support up to 256 GB
Tablet Protocols:
- PLC J2497
- ISO 15765
- SAE J1939
- ISO 14229 UDS
- SAE J2411
- ISO 11898-2
- ISO 11898-3
- SAE J1708
- SAE J1850 PWM/VPW
- ISO 13400
- CAN FD
MaxiFlash VCI
Communications: Bluetooth V2.1 + EDR, USB 2.0, Wi-Fi 5G, Ethernet
Wireless Frequency: 5 GHz
Input Voltage Range: 12 V DC to 24 V DC
Supply Current: 170 mA @ 12 V DC, 100 mA @ 24 V DC
Operating Temp: 0 to 50 Deg.C / 32 to 122 Deg.F
Storage Temp: -20 to 60 Deg.C / -4 to 140 Deg.F
Dimensions: 149 mm x 86 mm x 35 mm / 5.87 in. x 3.38 in. x 1.28 in.
Weight: 0.29 kg / 0.64 lb
400A Current Clamp
Current Measurement: AC or DC current up to 400A
Off-Highway Adapter Pack
Adapter Types: Komatsu 12-pin, Cummins 8-pin, CAT 9-pin, CAT 14-pin, Benz 14-pin
Supported Use: Added adapter connectivity for supported off-highway diagnostic applications
Application:
Commercial vehicle diagnostics for light, medium, and heavy-duty vehiclesFleet diagnostic service for Class 1-Class 9 heavy-duty vehicles
Off-road construction equipment diagnostics where Autel coverage applies
Construction and agricultural machinery diagnostics where supported
Battery, starting, and charging system analysis with the included MaxiBAS B200
Shop use where MS909CV diagnostic coverage and dedicated off-highway adapters are needed together
Fitment:
Light, medium, and heavy-duty commercial vehicles supported by Autel MS909CV coverage
Class 1-Class 9 heavy-duty vehicles supported by Autel MS909CV coverage
Off-road construction equipment supported by Autel MS909CV coverage
Construction and agricultural machinery supported by Autel off-highway coverage
Komatsu 12-pin adapter supports Komatsu engine diagnostics on off-highway vehicles where covered
Cummins 8-pin adapter supports Cummins engine diagnostics on off-highway vehicles where covered
CAT 9-pin and CAT 14-pin adapters support Caterpillar engine diagnostics on off-highway vehicles where covered
Benz 14-pin adapter supports Mercedes-Benz engine diagnostics on off-highway vehicles where covered
Includes:
MaxiSYS MS909CV diagnostic system: Main Unit / MaxiSYS tablet, MaxiFlash VCI, AC/DC Adapter 12V, Main Cable V2.0, USB 2.0 Cable V2, Type-C USB Cable, Clamp Cable, cigarette lighter / auxiliary power outlet adapter, Light Fuse 6x30 mm x2, Deutsch-9 adapter, Deutsch-6 adapter, JW1 x2, JW2 x2, JW3 x2, JW4 x2, JW5 x2, JW6 x2, JW7 x2, JW8 x2, JW9 x2, JW10 x2, UNI-4 adapter, MaxiBAS B200, 400A Current Clamp, Multimeter Test Lead x2, Alligator Clip x2, Multimeter Probe x2, DM100 Digital Multimeter, Quick Reference Guide, Packing List, Soft Cloth, Case, Carrying Case 687 x 170 x 471 mmOff-highway adapter pack: AULKOMATSU12 / KOMATSU12 Komatsu 12-pin adapter, AULCUMMINS8 / CUMMINS8 Cummins 8-pin adapter, AULCAT9 / CAT9 Caterpillar 9-pin adapter, AULCAT14 / CAT14 Caterpillar 14-pin adapter, AULBENZ14 / BENZ14 Mercedes-Benz 14-pin adapter
