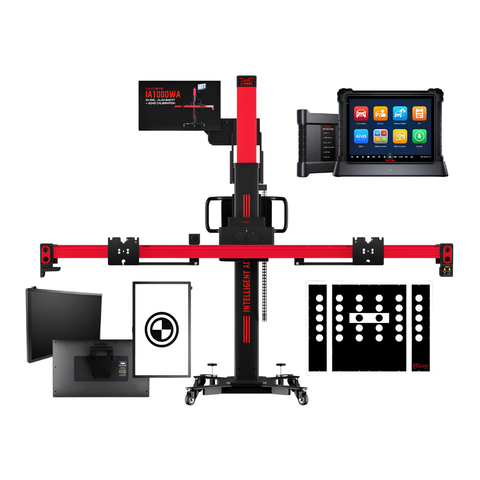

Autel IA1000LDWTDT ADAS + Wheel Alignment System, LDW + Digital Targets, Ultra S2
Car
Light Truck
Autel IA1000LDWTDT ADAS + Wheel Alignment System, LDW + Digital Targets, Ultra S2
Part No: AUT-IA1000LDWTDT
SHIPPING INFO
Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.
ACCESSORIES
Related Categories:
Advanced Driver Assistance System (ADAS)
Autel
Shop Equipment
PRODUCT INFO
The Autel IA1000LDWTDT is an automated ADAS calibration and wheel alignment system configured as a Lane Departure Warning package with a MaxiSYS Ultra S2 tablet and three digital target monitors. It supports LDW and forward-facing camera calibration with robotic target positioning, six HD cameras, automated floor compensation, digital target validation, and OEM-sourced calibration procedures. In-person training is included and scheduled after the unit is received; the tablet and card ship separately from the primary equipment shipment.
Features:
- Robotic forward-facing target positioning automates target setup and fine adjustment
- Six HD cameras with precision wheel-clamp targets provide 0.02° stated alignment accuracy
- Automated unlevel-floor compensation supports ADAS calibration and wheel alignment setup
- Digital Go/No-Go confirmation verifies target positioning before calibration proceeds
- Automatic digital target display selects calibration-specific target patterns
- Digital target monitors use self-adjusting brightness for varying shop lighting conditions
- Pre- and post-scan reporting documents target positioning and calibration workflow
- OEM-sourced calibration procedures support ADAS service workflows
- Software and target coverage supports U.S., Asian, and European vehicles
- Digital-target package replaces select physical LDW targets with corresponding digital versions
Specs:
Part No.: IA1000LDWTDTSystem Type: ADAS Calibration and Wheel Alignment
Package Type: LDW System w/ Ultra S2 and Digital Targets
Frame Model: AUTEL-CSC1000
Camera Count: 6
Camera Resolution: 3072 x 2048 Pixels Each
Digital Target Displays: 3 x 27 in Monitors
Rated Power: 360 W
Power Supply: 100-264 V, 50/60 Hz
Operating Temperature: 14-122°F
Storage Temperature: -4-140°F
Folded Frame Dimensions: 31.50 x 39.37 x 74.80 in
Crossbar Length: 106.30 in Unfolded, 15.75 in Folded
Frame Height Range: 65.75-109.06 in
Crossbar Height Range: 300-2500 mm
Application:
For automotive service shops, collision repair facilities, ADAS calibration centers, wheel and tire dealers, and automotive dealerships performing ADAS calibration and wheel alignmentFor Lane Departure Warning and forward-facing camera calibration using physical and digital LDW targets
For glass-repair ADAS calibration workflows

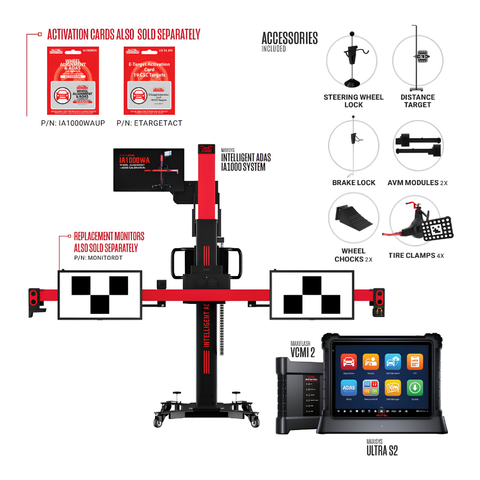

Includes:
MaxiSYS Ultra S2 TabletIA1000 Activation Card
LDW Targets
3 x Digital Target Monitors
Digital Target Activation Card
Steering Wheel Lock
Distance Target
Brake Lock
2 x AVM Modules
2 x Wheel Chocks
4 x Tire Clamps
In-Person Training
