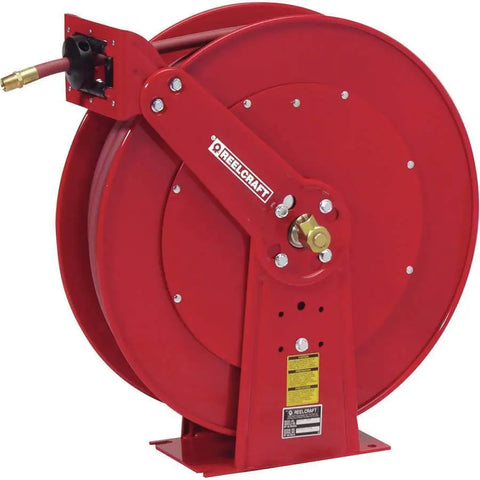

Reelcraft HD Low Pressure Air/Water Reel w/ Adjustable Guide Arm

Air Tools - Reelcraft HD Low Pressure Air/Water Reel W/ Adjustable Guide Arm
Made in USA

Reelcraft HD Low Pressure Air/Water Reel w/ Adjustable Guide Arm

Estimate Lead Time:
  • Hose ID, Length
    SKU
    Price
    Quantity
  • RC-81100-OLP
    775.01
  • RC-82100-OLP
    761.28
  • RC-82075-OLP
    769.52
  • RC-D83075-OLP
    964.41
  • RC-83050-OLP
    732.00
  • RC-D84050-OLP
    973.56
SHIPPING INFO
ACCESSORIES
DOWNLOADS


PRODUCT INFO

Reelcraft HD Low Pressure Air/Water Reel w/ Adjustable Guide Arm:
Reelcraft's Series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion resistant product suitable for a wide variety of heavy duty applications.


Features:

  • Hose anti-latch out feature ensures hose retracts every time.
  • Guide arm is field adjustable for wall, ceiling, or truck mounting positions.
  • Dual pedestal base and guide arm design, structurallyreinforced.
  • Five-in-one heat treated aluminum casting incorporates main shaft, ratchet, spring arbor and inlet/outlet plumbing in one piece casting.
  • Containerized spring assembly. Provides safe and easyhandling during maintenance.
  • Two sealed ball bearings for smooth rotation of main shaft.

Specs:

RC-81100-OLP
Series: 80000
O.D.: 0.600 in
Outlet (M) NPTF: 3/8 in
Inlet (F) NPTF: 1/2 in
Hose Length: 100 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 3/8 in
Pressure: 300 psi

RC-82075-OLP
Series: 80000
O.D.: 0.750 in
Outlet (M) NPTF: 1/2 in
Inlet (F) NPTF: 1/2 in
Hose Length: 75 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 1/2 in
Pressure: 300 psi

RC-82100-OLP
Series: 80000
O.D.: 0.750 in
Outlet (M) NPTF: 1/2 in
Inlet (F) NPTF: 1/2 in
Hose Length: 100 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 1/2 in
Pressure: 300 psi

RC-83050-OLP
Series: 80000
O.D.: 1.075 in
Outlet (M) NPTF: 3/4 in
Inlet (F) NPTF: 3/4 in
Hose Length: 50 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 3/4 in
Pressure: 250 psi

RC-D83075-OLP
Series: 80000
O.D.: 1.075 in
Outlet (M) NPTF: 3/4 in
Inlet (F) NPTF: 3/4 in
Hose Length: 75 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 3/4 in
Pressure: 250 psi

RC-D84050-OLP
Series: D80000
O.D.: 1.375 in
Outlet (M) NPTF: 3/4 in
Inlet (F) NPTF: 1 in
Hose Length: 50 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 210 Deg. F
I.D.: 1 in
Pressure: 250 psi
