CP 1/2" Air Impact Wrench with 2" Ext - CP7748-2

CP 1/2 Air Impact Wrench with 2 Ext - CP7748-2 - Impact

CP 1/2" Air Impact Wrench with 2" Ext - CP7748-2

  • SKU: CP-7748-2 $210.00
  • Save $15.00
  • 1 review

Part No: CP-7748-2

Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.
Items that ship for FREE via LTL Freight do not include any accessorials such as liftgate, Call before delivery, etc., as well as, any residential fees, limited access delivery fees, inside delivery fees, etc.

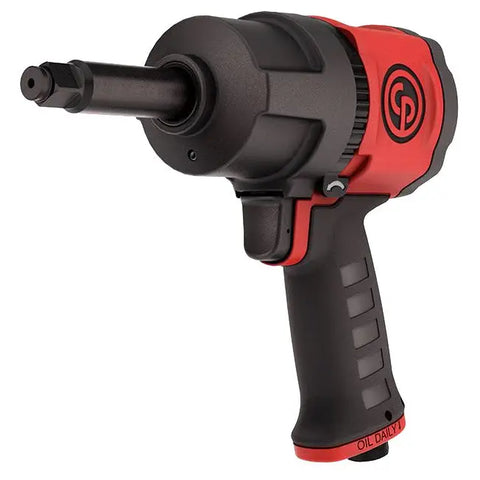

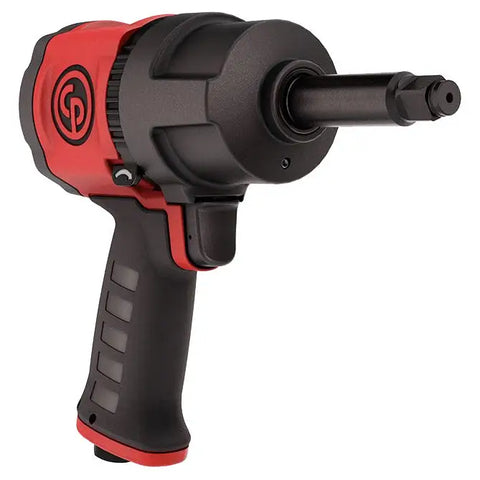

CP7748-2 1/2 Inch Composite Impact Wrench with 2 Inch Extended Anvil. This is our most powerful extended anvil tool with a maximum torque of 960-Ft/Lbs and also features an extremely fast runoff. This wrench offers the best performance/durability ratio and has a lightweight composite housing. Comfortable TPR Thermal Plastic Rubber injected in the handle for extreme comfort. The CP7748 is also designed for general mechanic applications in workshops & for roadside assistance.


  • 960 ft.lbs / 1,300 Nm of max torque in reverse position
  • One-hand reverse system / Ring system
  • 8.86 in. / 225 mm of length
  • Hard anodized end plates / Hard chromium aluminum cylinder / Twin hammer mechanism
  • 4.65 lbs - 2.11 kg thanks to its composite motor housing
  • Name laser engraved at the back of the tool
  • Curved handle with rubber material
  • Resistant to most chemicals used in workshops
  • Rubber grip at the back
  • Does not slip when it is in the operator's hand even if it is dirty or oily


Actual air consumption: 25 cfm
Air inlet thread size: 1/4 in
Average air consumption: 6.2 cfm
Blows per minute: 1350
Box dimensions: 3.75x8.45x10.85 in
Clutch type: Twin Hammer
European Directives: 2006/42/EC (17/05/2006)
European Sound standard: ISO 15744
European Standards: EN ISO 11148-6:2013
Forward_ms2: 1.99 m/s²
Free speed: 7000 rpm
Handle type: Pistol
Height: 7.87 in
Length: 8.86 in
Maximum Torque (reverse): 960 ft.lbs
Min. hose size: 3/8 in
Net weight: 4.65 lb
Side to center: 1 1/2 in
Socket retainer: Friction ring
Sound Power: 105.3 dB(A)
Sound pressure: 94.3 dB(A)
Sound uncertainty: 3 dB(A)
Square drive: 1/2 in
Vibration: 11.3 m/s²
Vibration (fwd): 6.49 m/s²
Vibration ISO: ISO 28927-2
Vibration uncertainty (K): 3.8 m/s²
Width: 3 in
Working Torque Range (fwd): 70 - 555 ft.lbs


Passenger Car
Pick-up Trucks
Light Vehicles
Medium and Heavy-duty Truck
Tractor Trailers
Buses & Coaches
Agriculture Vehicle
Construction & Minning Vehicle
Military Vehicle
