PRODUCT INFO

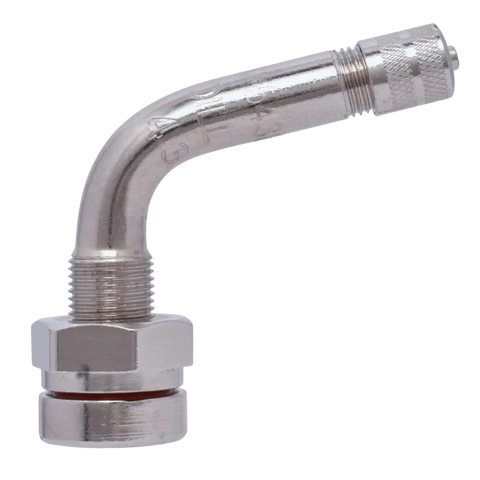

Premium nickel-plated brass valve stem with a 75-degree bend, M6 tapped core housing, and O-ring seal base. Ideal for tubeless truck, bus, and off-road tire applications where angled access and secure inflation are critical.
Features:
- 75° Angled Design: Provides easy air access on deep-dish or dual-wheel assemblies.
- Precision M6 Tapped Core: Allows direct connection for pressure sensors or custom inflation fittings.
- Durable Nickel Finish: Corrosion-resistant surface for long-term reliability in demanding environments.
- O-Ring Seal Base: Ensures an airtight fit on .390-inch rim holes, preventing leaks even under high pressure.
- Straight Thread Mount: Simplifies installation with consistent torque and sealing performance.
Specs:
Part Number: DV-543E (0700543E0DV010)Material: Nickel-Plated Brass
Rim Hole Diameter: .390in (9.9 mm)
Base Seal Type: O-Ring
Valve Core Thread: M6 Tapped
Bend Angle: 75 Deg.
Application: Tubeless Truck, Bus, and Specialty Tires
Max Pressure Rating: 200 PSI (typical)
Finish: Polished Nickel

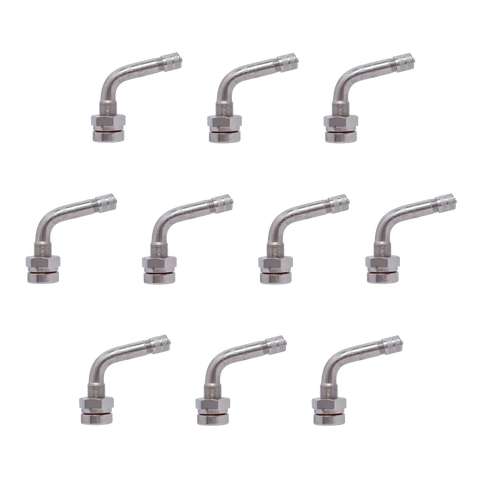

Qty: 1 or Pkg of 10
Application:
Medium & heavy-duty truck and trailer wheelsBus and RV aluminum wheels
Custom off-road applications requiring angled valve stems
Suitable for TPMS or inflation extensions requiring M6 thread
