Specs:

Brand: Rotary

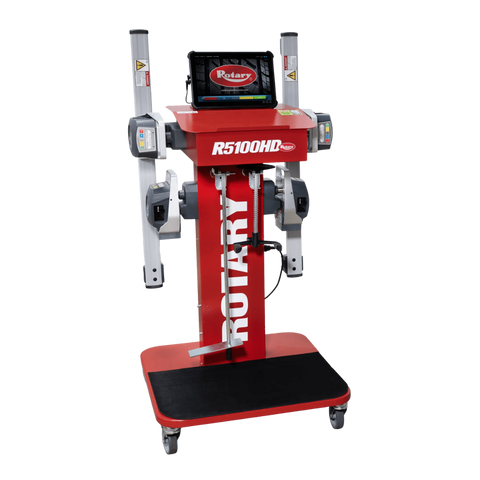

Model: R5100HD Pro
Product Type: Commercial truck and trailer alignment system
System Style: Towerless
Operation: Mobile PC tablet
Sensor Type: 6-CCD infrared
Measuring Heads: 4 supplied
Measuring Head Communication: Infrared transmission
Control Unit Communication: Bluetooth
Alignment Reading Distance: Up to 59 ft
Tire Dia. Range: 30 in to 50 in
Trailer Aligner Capacity: Up to 8 axles
Power Supply: 110V, 1 Ph, 60 Hz
Front Axle Measuring:
- Total toe accuracy: ±3
- Total toe measuring range: ±2 Deg.
- Total toe total range: ±20 Deg.
- Partial toe accuracy: ±1
- Partial toe measuring range: ±1 Deg.
- Partial toe total range: ±2 Deg. 30
- Set-back accuracy: ±2
- Set-back measuring range: ±2 Deg.
- Set-back total range: ±5 Deg.
- Camber accuracy: ±2
- Camber measuring range: ±3 Deg.
- Camber total range: ±10 Deg.
- Caster accuracy: ±5
- Caster measuring range: ±10 Deg.
- Caster total range: ±18 Deg.
- King pin accuracy: ±5
- King pin measuring range: ±10 Deg.
- King pin total range: ±18 Deg.
Rear Axle Measuring:
- Total toe accuracy: ±3
- Total toe measuring range: ±2 Deg.
- Total toe total range: ±20 Deg.
- Partial toe accuracy: ±1
- Partial toe measuring range: ±1 Deg.
- Partial toe total range: ±2 Deg. 30
- Set-back accuracy: ±2
- Set-back measuring range: ±2 Deg.
- Set-back total range: ±5 Deg.
- Camber accuracy: ±2
- Camber measuring range: ±3 Deg.
- Camber total range: ±10 Deg.
- Thrust angle accuracy: ±2
- Thrust angle measuring range: ±2 Deg.
- Thrust angle total range: ±5 Deg.
