PRODUCT INFO

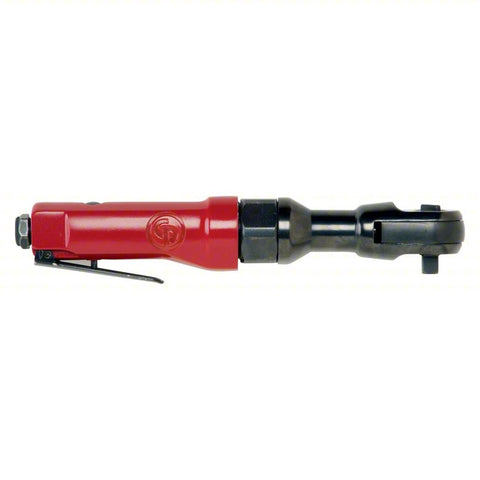

The Chicago Pneumatic CP886 is a 3/8-inch pneumatic ratchet wrench for threaded fastener work and general maintenance. Its compact, low-profile head helps improve access in tight spaces, while the easy-grip reverse supports quick directional changes. The CP886 delivers up to 50.2 ft-lbf of reverse torque with a 160 rpm free speed.
Features:
- 3/8-inch square drive for compatible sockets and accessories
- Compact head design helps reach tight fastening areas
- Easy-grip reverse for simple directional changes
- Ball detent output retainer helps secure the socket
- Hardened gears support ratchet durability
- Aluminum main body material
Specs:
Part No.: CP886Manufacturer Ref: T024240
Product Type: Pneumatic ratchet wrench
Drive Size: 3/8in
Drive Type: Square
Retainer Type: Ball detent
Free Speed: 160 rpm
Torque:
- Max Reverse Torque: 50.2 ft-lbf / 68 Nm
- Working Reverse Torque Range: 9.6 to 50.2 ft-lbf / 13 to 68 Nm
Air:
- Max Dynamic Working Pressure: 90 psi / 6.3 bar
- Air Inlet Thread Size: 1/4in
- Air Consumption at Load: 17 cfm / 8 l/s
- Average Air Consumption: 4.25 cfm / 120 l/min
- Min Hose Diameter: 10 mm / 3/8in for 5 m hose length
Length: 10.24in / 260 mm
Weight: 2.62 lb / 1.19 kg
Material: Aluminum
Sound:
- Sound Pressure: 99 dB(A)
- Sound Power: 110 dB(A)
Vibration:
- Vibration: 3.7 m/s²
- Vibration Uncertainty: 1.3 m/s²
Application:
General maintenance fastening workThreaded fastener assembly and removal
Tight-access fastening where a compact, low-profile ratchet head is useful
Fitment:
3/8" square-drive sockets and accessories
Air systems using 1/4" air inlet thread and 90 psi max dynamic working pressure
