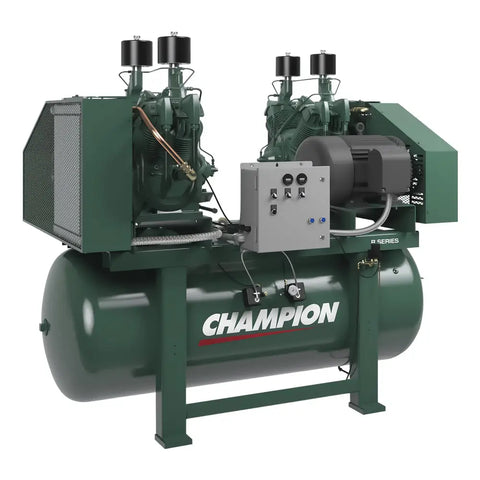

Champion HR25D-24 R-Series 25HP Duplex Air Compressor, R70 Pumps (240 Gal)

Champion HR25D-24 R-Series 25HP Duplex Air Compressor R70

Tax Saving Good Credit Financing Bad Credit Financing

Champion HR25D-24 R-Series 25HP Duplex Air Compressor, R70 Pumps (240 Gal)

  • SKU: HR25D-24 $26,566.35
  • Save $22,943.65

Part No: HR25D-24

Free Shipping
Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.


Introducing the Champion HR25D-24 R-Series duplex air compressor with 25 HP and 240-gallon tank. The R70 pumps provide high performance, while head unloaders ensure efficient operation. Enjoy reduced noise and a clean work environment with two intake filters/silencers and vibration isolators. Safety features include two enclosed belt guards and loadless starting. The mounted NEMA 1 control panel offers easy access, and the electric key start switch adds convenience. This compressor also includes a control voltage transformer and is California code compliant.


  • 25 horsepower and 240 gallons tank
  • Two R70 pumps for high-performance and durability
  • Mounted NEMA 1 Control Panel for easy access
  • Electric key start switch for added convenience
  • Head unloaders included in R70 pumps for efficient operation
  • Two intake filter/silencers for reduced noise and a clean working environment
  • 2 x enclosed belt guards for added safety and protection
  • Vibration isolators for noise reduction and prevention of compressor damage
  • Loadless starting without bleeding off the receiver
  • Control voltage transformer included
  • Duplex units are start/stop control with alternation
  • ASME coded receiver
  • 2 x 1800 RPM Motors
  • California Code Compliant Receivers


Product Configuration: Duplex
Tank Configuration: Horiz
Pump Model: R70
Pump RPM @ 175 PSI: 776
Tank Size: Gallons/(liters): 240/908
ACFM @ 80 PSIG/(m3/hr @ 5.5 BAR): 210.4/357.5
ACFM @ 125 PSIG/(m3/hr @ 8.6 BAR): 205.8/349.7
ACFM @ 175 PSIG/(m3/hr @ 12 BAR): 181.4/308.2
Est. Ship Weight: Lbs./(kg): 2940/1334
Model Number: HR25D-24


Automotive repair shops
Industrial manufacturing facilities
Woodworking shops
Construction sites
Paint shops
Metalworking shops
Tire shops
Large-scale farming operations
Mining sites
Oil and gas facilities

Standard Warranty:

1 year parts
1 year labor
3 years Compressor Pump (Defect in material and workmanship)

Premium Ext. Warranty Kit

2 years parts
2 years labor
6 years Compressor Pump (Defect in material and workmanship)
