Cemb C212 Digital Truck Wheel Balancer w/ Hood & Lift

SKU: CMB-C212 $12,295.00
Save $4,042.90

Part No: CMB-C212

SHIPPING INFO

Free Shipping

Ground Shipping to Lower 48 States
Alaska, Hawaii, & any/all US territories & international orders are excluded.

ACCESSORIES

DOWNLOADS

Related Categories: Balancers Machine Cemb Tire Balancers

PRODUCT INFO

C212 Sale Sheet

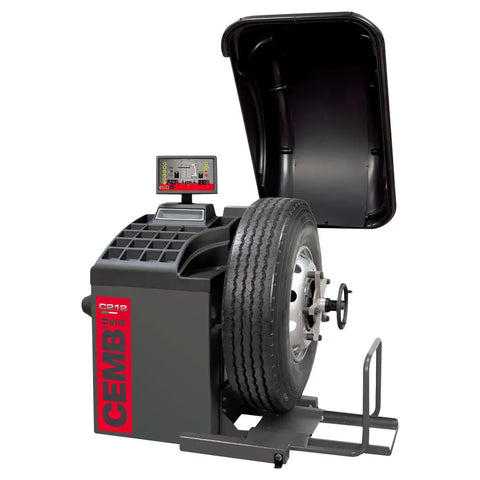

Looking for a high-quality truck wheel balancer that's easy to use? Look no further than the CEMB C212. With automatic distance and diameter entry (2D) and a pneumatic lift, this balancer is perfect for truck wheels. It's also great for heavy-duty truck service shops, municipalities, fleet truck tire service companies, and all commercial truck tires. Plus, it comes fully assembled so that you can get started immediately.

Features:

C212 balances steel and light alloy wheels of cars, light and heavy commercial trucks, and bus thanks to a 40mm shaft and a large assortment of adaptors and cones standard.
A pneumatic stationary brake is useful during wheel mounting and counterweight application.
Pedal-operated pneumatic lift (soft type) enables excellent centering accuracy of the wheel on the shaft.
Automatic Distance and Diameter Entry (2D)
Fully Automatic Cycle with Breaking
Self-Diagnosis and Self-Calibration
Menus for quick selection of the following:: inches to millimeters, unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
Direct selection ounces/grams
Optimization program for compensation of rim and tire unbalance
'Static' program-plus 4 ALU programs for PAX, light alloy, or specially shaped rims
One Button Split and Hidden Weight Program
Direct weight location program (no repositioning of stick-on weights)
Wheel Hood Included

Specs:

Power Supply: 220V, 50/60 Hz, 1Ph
Max. Power absorbed: 0.03 kW
Shaft Size: 40mm
Balancing Speed: less than 70 rpm truck
Balancing Speed: less than 100 Rpm car
Balancing Accuracy: less than 10g truck
Balancing Accuracy: less than 1g car
Rim Diameter: 10 in - 30 in
Rim Width: 1.5 in - 20 in
Maximum Wheel Weight: 550 lbs or (250kg)
Operating Temperature: Deg. F 32-113 ( Deg. C 0-45)
Average Cycle Time: 20 seconds truck
Average Cycle Time: 8 seconds car

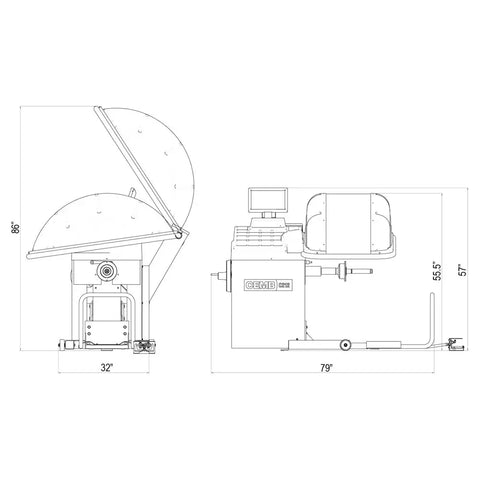

Packing Dimensions: L58 in x W43 in x H59 in

Application:

Cars
Light trucks
Heavy duty trucks
Bus

Includes:

1 x Manual Locking Kit (4pc) - 41FF59322
1 x Truck Cone Kit (4pc) - 40FF43748K
1 x Weight Hammer - 301400525
1 x Rim Width Gauge - 940051000

Cones
1 x Large Cone 40FF61043
1 x Medium Cone 40FF43716
1 x Small Cone 4FF43715
1 x Mini Cone 40FF88351
